The polyester sheath and construction of the PINTAIL ensure high abrasion resistance without any handling restrictions, as the rope remains supple even after intensive use and frequent abseiling maneuvers. Due to the slightly larger diameter and the easy-to-grip sheath structure, it is particularly well suited to introduce guided tour visitors to the world of canyoning.

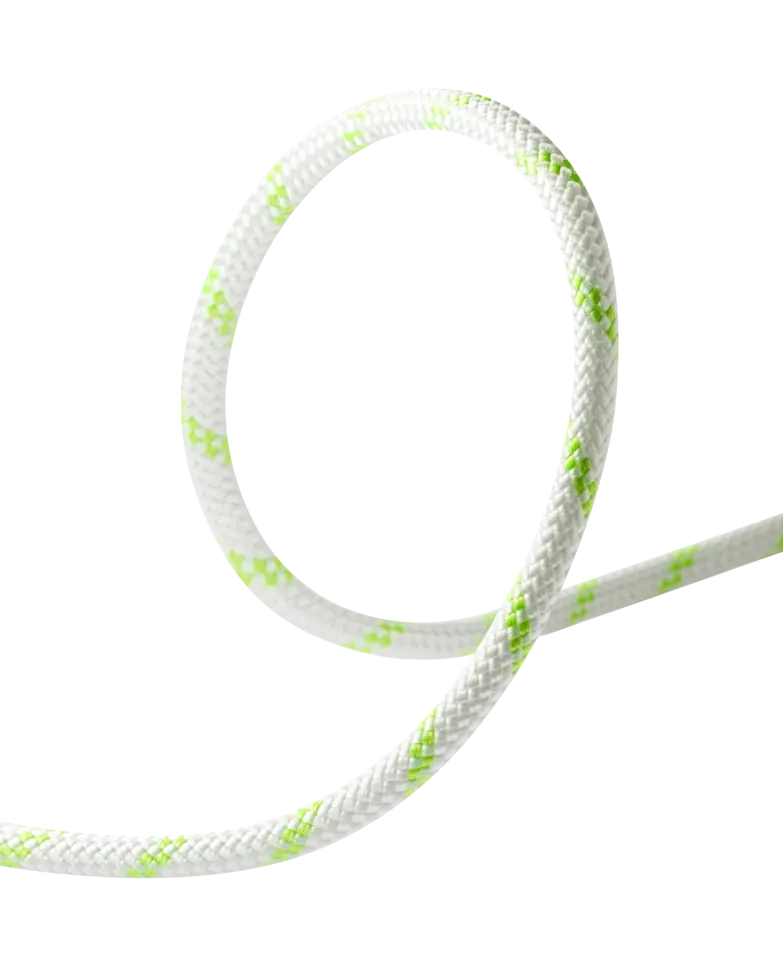

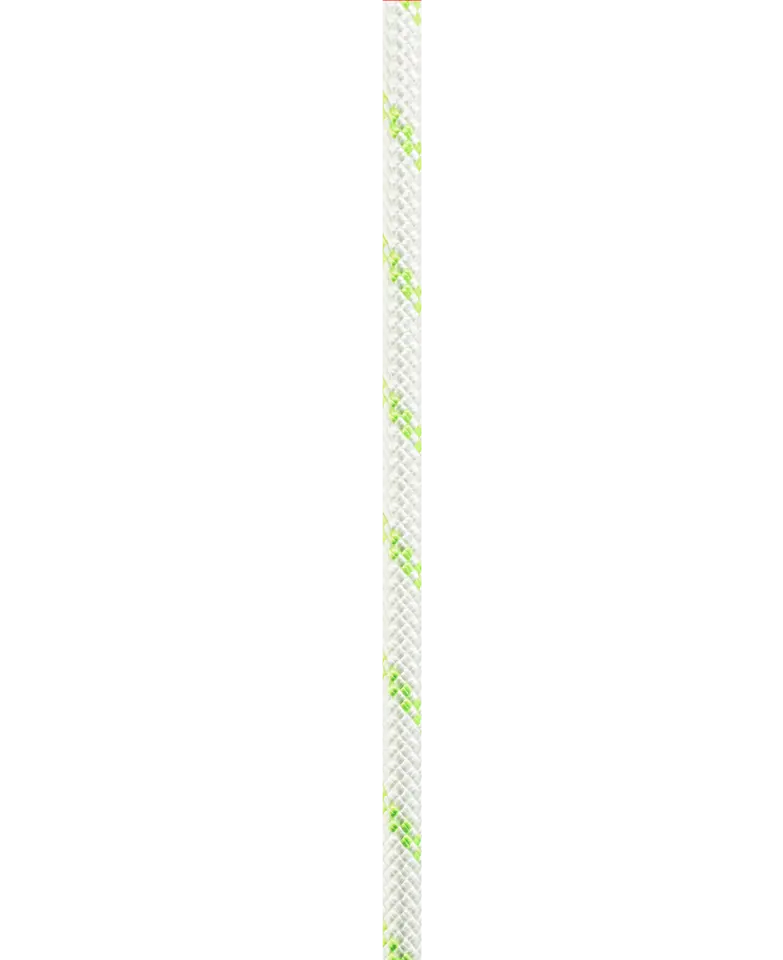

PINTAIL 10,0MM
Static Ropes
Art. no.
Extremely robust and durable canyoning rope
-
Description
-
Features
- Polyester sheath for high abrasion resistance
- Good visibility
- Fulfills the safety requirements for static ropes in accordance with EN 1891 Type A
-
Technical information
- Core proportion: 60 %
- Diameter: 10 mm
- Knotability: 0,90
- Number of falls: -
- Impact force: - kN
- Sheath proportion: 40 %
- Schrinkage H20: 1,30 %
- Weight per meter: 70 g/m
- Minimum breaking strength: 30 kN
- Static elongation: 2,9 %
- Dynamic elongation: - %
- Minimum breaking strength in figure-of-eight knot: 17 kN
- Certification: EN 1891 Typ A
- Material: Polyester / Polyamide
- Rope Type: Static A
-
EDELRID technologies
Thermo Shield
THERMO SHIELD is the basic treatment that we apply to all our ropes to ensure they have the renowned EDELRID suppleness. The treatment involves a thermal process that perfectly aligns the core and sheath yarns. A special heat treatment relaxes then shrinks the rope’s fibers. ...
Tracer Thread Markings
TRACER THREADS: The diameter of all EDELRID static ropes and accessory cords can be quickly and unambiguously determined from the number of tracer thread markings on the sheath. -
PDF downloads
-
Safety instructions & manufacturer information
- This product is part of personal protective equipment (PPE) and/or warnings and safety information are available for this product. Please refer to the instructions for use.
- Manufacturer: EDELRID GmbH & Co. KG | Achener Weg 66 | 88316 Isny i. A. | Germany | www.edelrid.com
