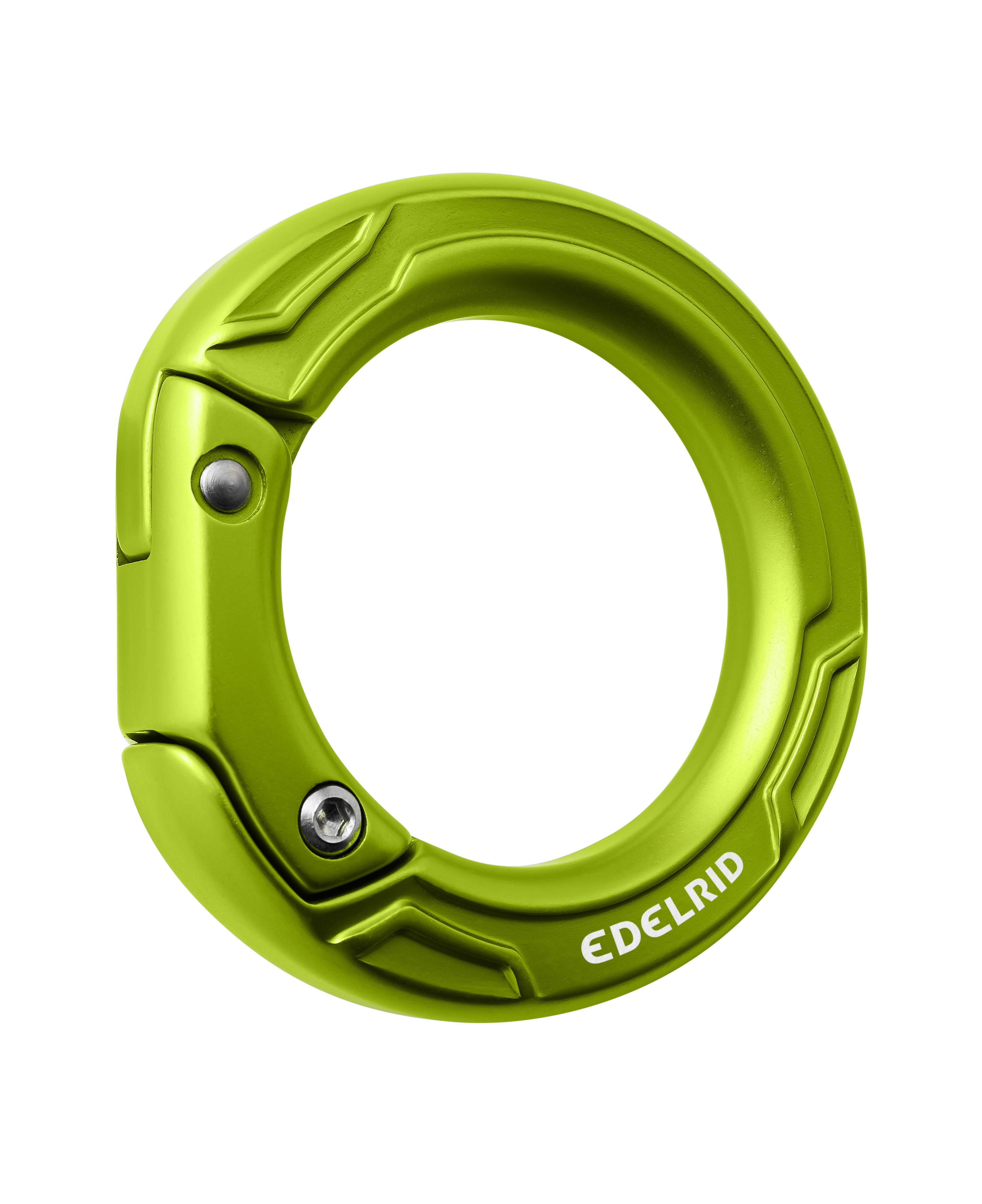

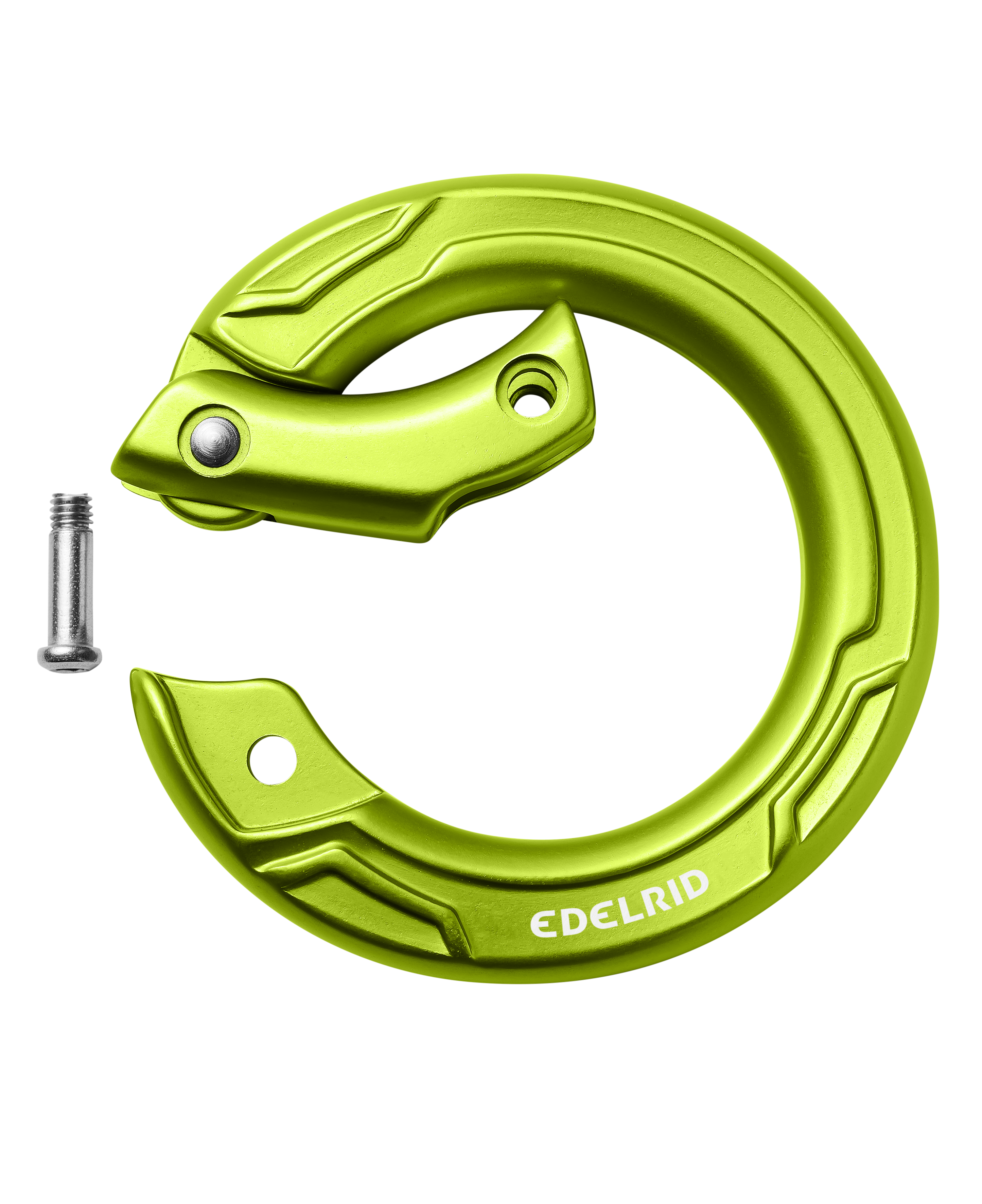

Openable ring in accordance with EN 362-M for permanently connecting load-bearing equipment elements in any direction. The CUPID is designed with a single screw and no additional individual parts. The screw is never loaded along its axis and the ring remains closed under load even if the screw is lost. The opening width of 12 mm makes installing rope terminations, slings, and metal components easy.
-
Description
-
Features
- Opening width: 12 mm
- Inside diameter: 44 mm
-
Technical information
- Width: 70 mm
- Length: 70 mm
- Gate opening: 12 mm
- Fmax. major axis: 20 kN
- Fmax. minor axis: 20 kN
- Certification: EN 362
- Material: Aluminium
-
