SMART BELAY X

Fun and Safety on
High Ropes Courses

Only the Best for Your Guests

The SMART BELAY X is the further development of our legendary SMART BELAY - now with innovative magnet technology for consistent safety and maximum freedom of movement in your high ropes course. Certified according to EN 17109 (class D).

At the heart of the SMART BELAY are the intercommunicating roller carabiners. If one of the carabiners is opened, the opening mechanism of the other carabiner is automatically blocked. A new feature is the magnetic locking device: the opening mechanism of the SMART BELAY is only released by an integrated magnet when it comes into contact with the steel rope. Complete unhooking of the system is not possible without additional tools. The advantage: more safety for visitors, less risk for operators.

Like its predecessor, the new SMART BELAY X can be easily implemented in all existing parks without the need for costly modifications. Even moving or vertical stations can be overcome without friction and thanks to the modular system, the SMART BELAY X can be adapted to all common safety cable heights.

The SMART BELAY X allows the customer to climb self-determined and thanks to the outstanding geometry as well as the intuitive handling, it can also be operated by children without any problems. Overtaking is also very easy, avoiding annoying traffic jams with long waiting times.

Another advantage are the steel rollers integrated in the carabiner. They are designed for use in zip lines and replace the use of double pulleys. The integrated pilot bar minimises the risk of strangulation and also serves as a control or holding bar in zip lines or for tricky elements in the course.

An integrated RFID transponder enables fast registration and effective management - an invaluable advantage not only in rental operations. For example, deployment cycles and/or the PPE status of the product can be read out. This not only saves time and costs, it also increases safety in rental operations.

How the EUV works Principle

1. unlocking // 2. rehanging // 3. locking

  • Intuitive operation even with children's hands
  • Overtaking possible
  • Flexible movement of the visitor in the exercises
  • No need to transfer to a double pulley for rope slides due to SMART BELAY pulley carabiner
  • Pilot Bar protects against strangulation
  • Pilot Bar as a handhold in difficult passages
  • Pilot Bar as control support in rope slides (no hand on the steel rope)
  • Universally applicable in all exercises and with all equipment.

Modular system: Choose the variant that suits you best!

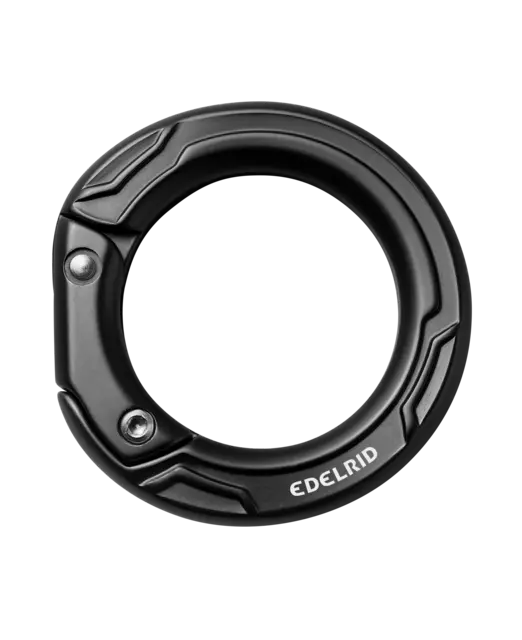

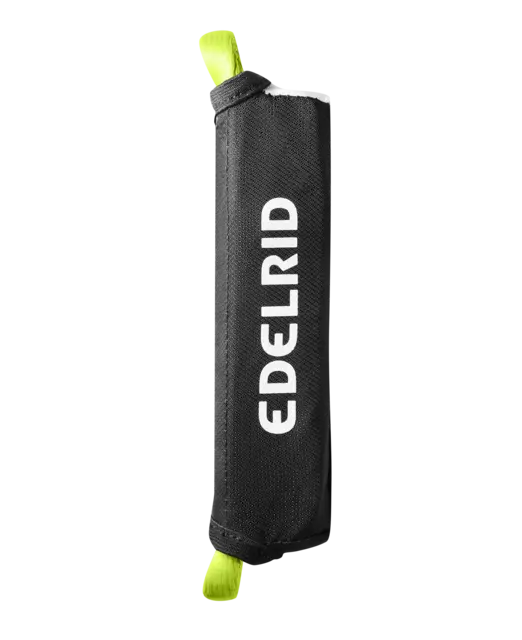

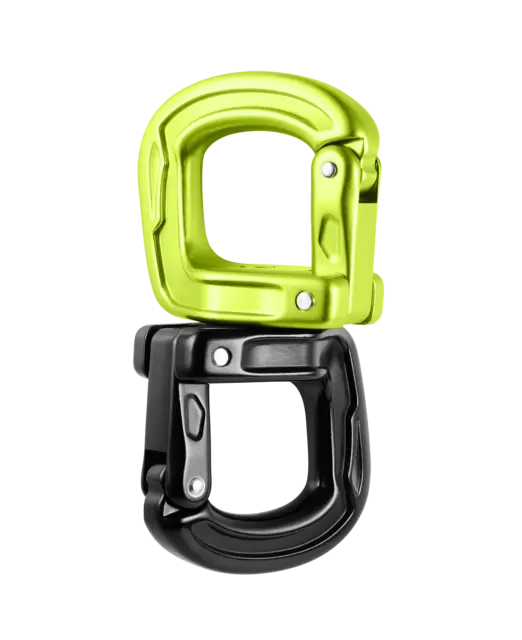

Modular system: With our modular elements, the SMART BELAY X can be individually adapted to the needs of your system. CONECTO and CONECTO SWIVEL are not available in all countries.

Service

  • Quick function check can be carried out independently by the staff before handing over or returning the equipment
  • Quick and easy maintenance by adjusting the pull as required by the user
  • Inspection can be carried out independently after service partner training, alternatively by EDELRID or partner
  • Endless service life, as all parts are replaceable

Specifications

  • Safety rope height 1.6 m - 2.1 m
  • Approved steel rope diameter 10 mm - 13 mm
  • Category D (standard EN 17109)
  • Easy to integrate into existing installations without costly additional installations
  • High flexibility in construction and design of park elements
  • Roller carabiners replace double pulley for rope slide
