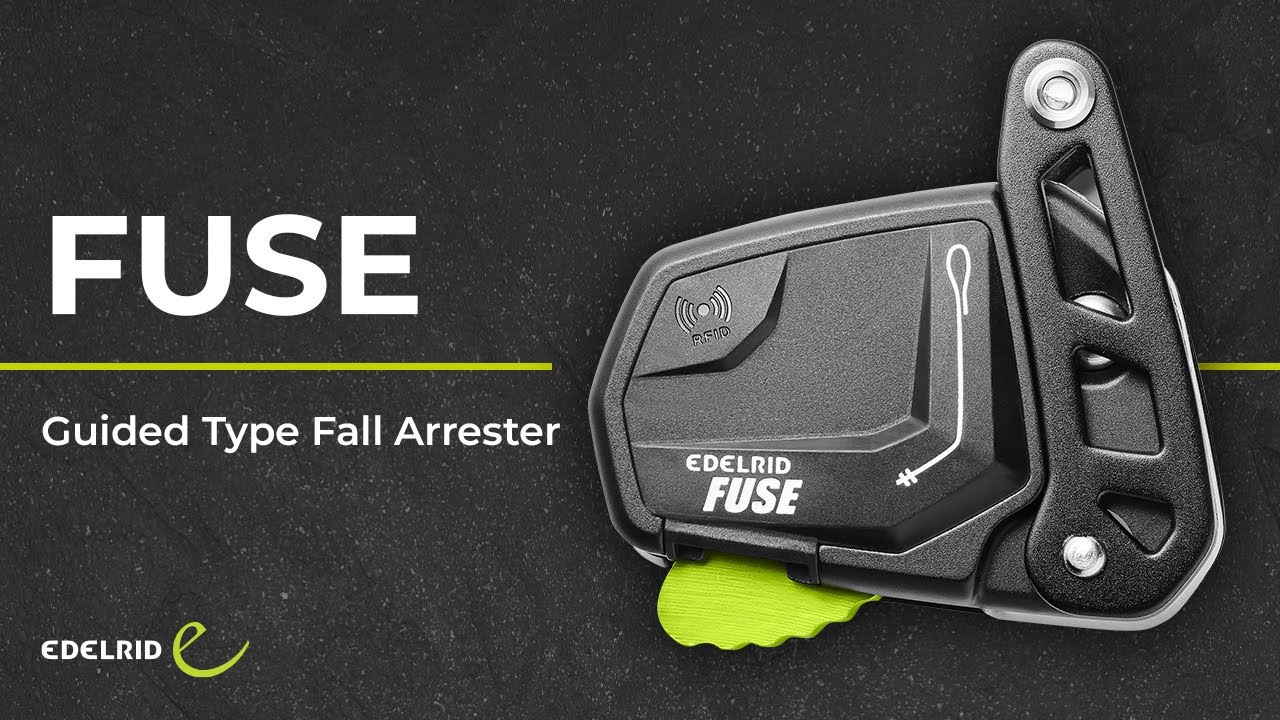

Professional Guided Type Fall Arresters FUSE

FUSE

Fall arrester

Guided type fall arrester for rope access
Size:
Colour:
Box content:
  pcs
This item is only available at specialised dealers.

  • Description

    The FUSE is a guided type fall arrester for work-at-height applications. It meets the key requirements of relevant European and North American standards for a user weight of up to 140 kg. The attachment point on the lever arm supports smooth movement of the device along the safety rope during both ascent and descent. A key design feature of the device is the patent-pending separation of the locking mechanism and the speed-dependent activator. The cam operates without teeth, which can help reduce the mechanical load on the rope. In addition, the locking action can be released without completely unloading the system. The locking function allows the clamp to be engaged when required. The device can be attached to and removed from the rope without being disconnected from the carabiner. In combination with the DEFUSER RESCUE energy absorbers (Standard or L), the maximum arrest force is up to 30% below the value required by the relevant standards. Different absorber lengths and performance characteristics allow the system to be adapted to a range of applications, including rescue operations and horizontal use.

  • Features
    • Only device in the market that meets the standards EN 353-2, EN 12841-A, RfU 11.075, and ANSI Z359.15 for a payload of up to 140 kg – approved for horizontal applications
    • Runs along incomparably smoothly from the first meter
    • Separation of the blocking mechanism and its speeddependent activator – a patent application has been filed – improve reliability and safety
    • Activation of the clamping cam at a speed exceeding 2 m/s
    • Waiving at a toothed clamping cam reduces wear on the rope, prevents damage of the rope, and ensures the blocking can be released without completely relieving the load
    • Integrated NFC chip for simplified operational documentation
    • Arrest function facilitates taut belaying in the working position and prevents sagging of ropes when it is exposed to wind
    • Easy attachment and detachment from the rope without separation from the karabiner
    • Use of DEFUSER energy absorbers reduces the arrest shock to 30 % below the standard
    • For a rope diameter of 10 to 12 mm

  • Technical information
    • Approved rope diameter: 10 - 12 mm
    • Certification: EN 12841-A
    • Certification: EN 353-2
    • Certification: ANSI Z359.15
    • Certification: PPE-R/11.075

  • EDELRID technologies
    NFC

    NFC

    EDELRID offers a range of products with integrated NFC transponders. These are small, robust, and have been specially developed for use with PPE products. They communicate in the HF frequency range (13.56 MHz) and can be read using appropriate readers or NFC-enabled mobile devices.
    Scannable initialized

    Scannable initialized

    • PDF downloads

    • Safety instructions & manufacturer information
      • This product is part of personal protective equipment (PPE) and/or warnings and safety information are available for this product. Please refer to the instructions for use.
      • Manufacturer: EDELRID GmbH & Co. KG | Achener Weg 66 | 88316 Isny i. A. | Germany | www.edelrid.com
